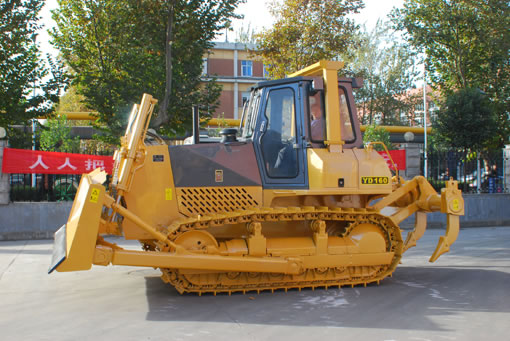

YD160 Crawler Bulldozer

Main Features of the Crawler Bulldozer
1. This crawler bulldozer is equipped with WD10G178E25 supercharged diesel engine with optimum power reservation coefficient.
2. The hydraulic torque converter and gear box with hydraulic power shift are adopted in the hydraulic system to meet different work conditions.
3. Humanized operation layout is applied for crawler bulldozer cab, which features high efficient and comfortable.
4. The steering system and braking system are controlled by hydraulic power. The shovel blade and scarifier controlled by joystick, flexible, safe and reliable.
5. The crawler bulldozer has advanced structure and beautiful appearance.

Configuration of the Crawler Bulldozer
1. The crawler bulldozer can be optionally equipped with a protective device to protect against falling objects.
2. Uses integral instrument desk.
3. Maintenance-free battery is adopted.

Technical Specification of the Crawler Bulldozer

Total Weight17500kg
Max. Towing Force154kN
Engine ModelWD10G178E25
Engine Rated Power131kW
Engine Rated Speed1850r/min
Forward Ⅲ Gear3.29~9.63km/h
Reverse Ⅲ Gear4.28~12.53km/h
Track board width500mm
Ground Pressure68kPa
Overall Dimension(L×W×H)5080×3612×3322mm
Bulldozer Blade (W×H)3612×1160mm
Max. Lifting Height of Bulldozer Blade960mm
