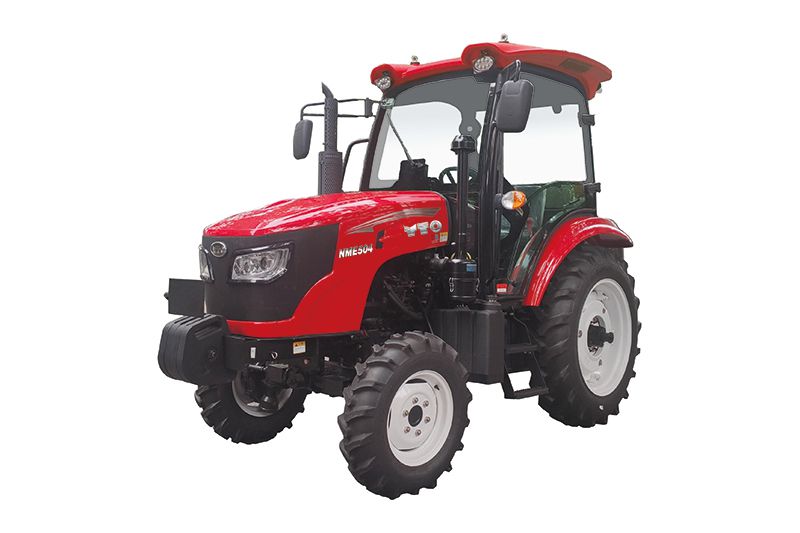

Compact Utility Tractor, 45-55HP

YTO-EME454/NME504/NME554

Compact Utility Tractor, 45-55HP

Compact Utility Tractor, 45-55HP

YTO-EME454/NME504/NME554
Features
  • The series of tractors are designed with a nice-looking appearance and a compact structure to suit field chores and transportation work;
  • The naturally aspirated 4-cylinder diesel engine produces high horsepower with low fuel consumption;
  • 8F/4R gears with side shift lever enable easy and convenient operation;
  • The final transmission adopts a planetary gear reducer and it is load-balanced and long-lasting;
  • The wet disc brake results in reliable and smooth stop;
  • The hydrostatic steering unit ensures precise control and requires less operator effort;
  • The dual speed PTO meets various farming needs, such as, rotary tillage;
  • We provide optional air brake systems and a high-pressure lifter.

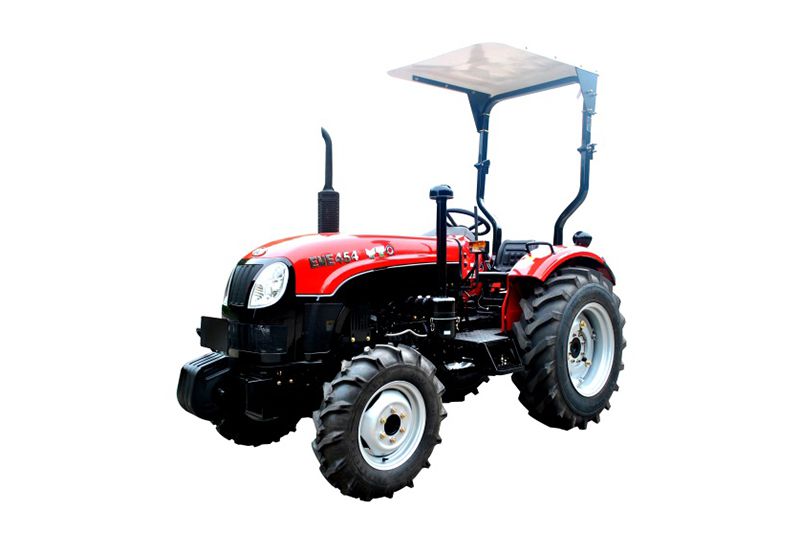

  • Open station
    Open station

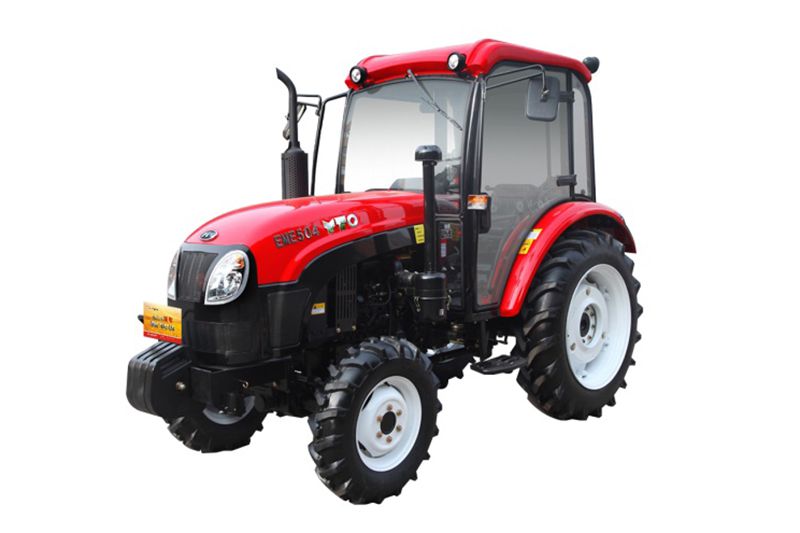

  • Enclosed cab
    Enclosed cab

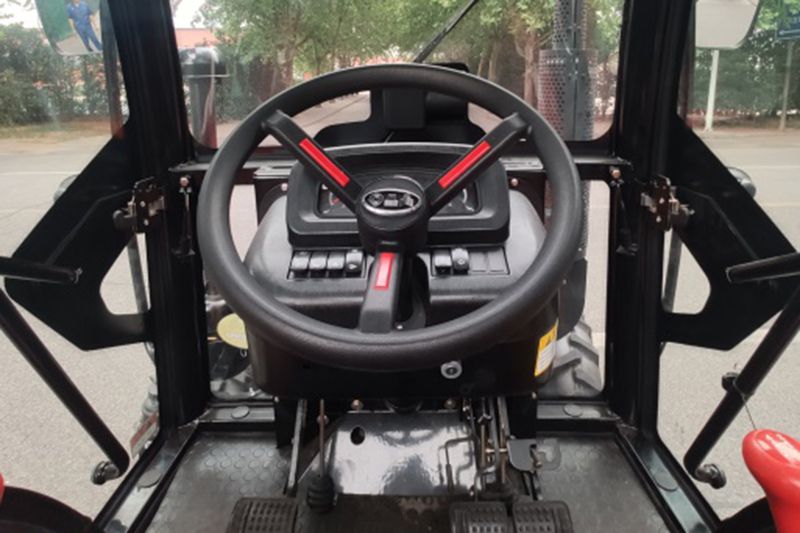

  • Wide view
    Wide view

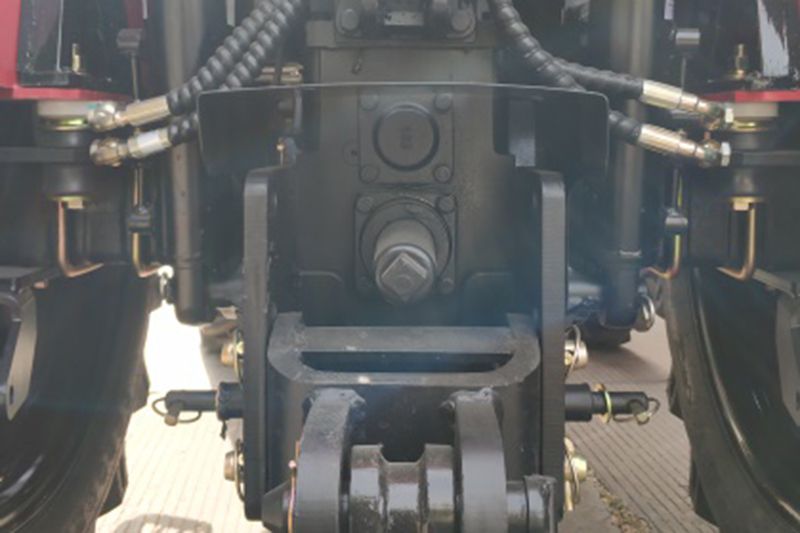

  • High-pressure lifter
    High-pressure lifter
Specifications
Model (with ROPS)
EME454
NME504
NME554
Engine type Naturally aspirated 4-cylinder diesel engine
Rated engine HP (kW) 33.1 (45) 36.8 (50) 40.5 (55)
Engine speed (rpm) 2300 2200
Clutch Dual action
Gears 8F/4R (Option:16F/8R) 8F/4R (Option: 8F/8R or 16F/8R)
Speed range (km/h) 2.46-33.22 2.36-30.88 2.255-29.53
Brake Wet, disc
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (kN) ≥10.9
Hydraulic multiplier (set) 1 or 2
Dimensions (L*W*H) (mm) 3660*1485*2720 3675*1515*2720
Wheelbase (mm) 1830 1840
Ground clearance (mm) 300
Min. turning radius (m) 3.8±0.3
Wheel track (F/R) (mm) 1200/1200-1400
Tyre (F/R) 7.50-16/11.2-28
Min. operating mass (kg) 1820 1930
