50–75 HP Orchard Tractor | Cabs & ROPS

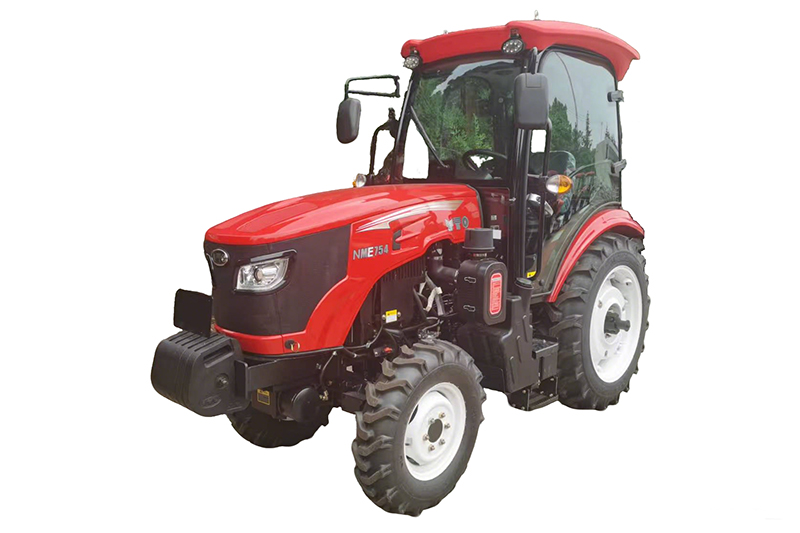

Narrow Tractor / Orchard Tractor, 50-75HP

Features

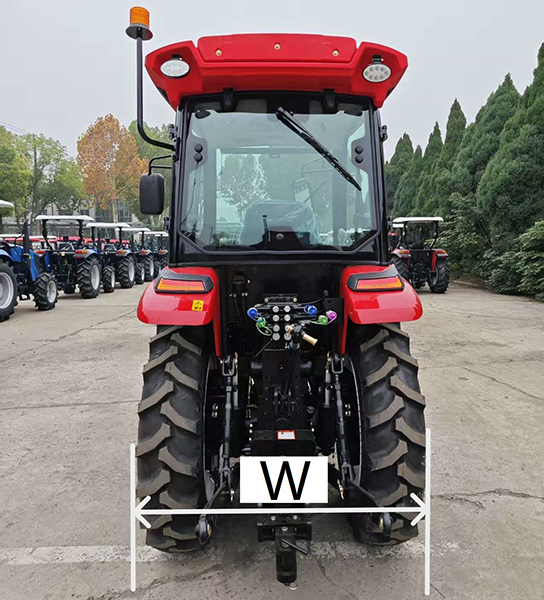

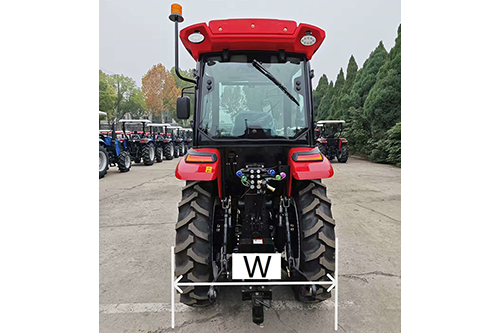

This tractor features an attractive design and compact body with a minimum overall width of ≤1.2m, making it ideal for orchards and other narrow or confined spaces.
The standard 8F/8R shuttle shift, with an optional 16F/8R creeper gear configuration to meet a diverse range of operational needs.
Hydrostatic power steering ensures light, responsive, and effortless handling.
Equipped with an integrated front axle housing that provides superior strength and load-bearing capacity.
Four-post cab offers wide visibility. For enhanced comfort, air conditioning and heating systems are optional..

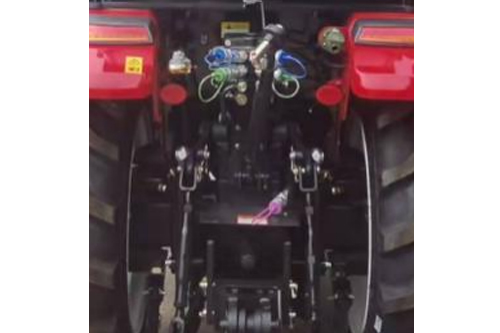

Optional air brake system and two hydraulic outputs.
Can be equipped with an air-over-hydraulic (air) brake system and two units of hydraulic outlets.

Specifications

Model		NME5045F	NME5545F	NME6045F	NME6546F	NME7046F	NME7546F
Engine type		4 cylinder, naturally aspirated diesel engine			4 cylinder, turbocharged diesel engine
Rated engine HP (kW)		36.8(50)	40.5(55)	44.1(60)	47.8(65)	51.5(70)	55.2(75)
Engine speed (rpm)		2300	2200
Clutch		Double Action
Gears		8F/8R (option: 16F/8R)
Speed range (km/h)		2.34-30.71	2.25-29.37
Brake		Wet, disc
Rear PTO (rpm)		540/1000
Lift capacity (pivot point) (KN)		≥15
Hydraulic outputs (set)		1 or 2
Dimensions (LWH) (mm)	ROPS	370012602200	370012852230	370012852275	372012852275	372013452280
	Cab	370012002400	370012852430	370012852475	372012852475	372013452480
Wheelbase (mm)		1810
Ground clearance (mm)		270	280	300
Min. turning radius (m)		5.2±0.3
Track width (F/R) (mm)		900 / 900-1100	1000 / 1000-1100
Tyre (F/R)		6.00-16 / 9.5-24	6.50-16/11.2-24	7.50-16/11.2-28
Total mass (ROPS/Cab) (kg)		2120/2220	2170/2270	2220/2320		2320/2420
