45–70 HP Orchard Tractor | Compact Tractor

Narrow Tractor / Orchard Tractor, 45-70HP

Features

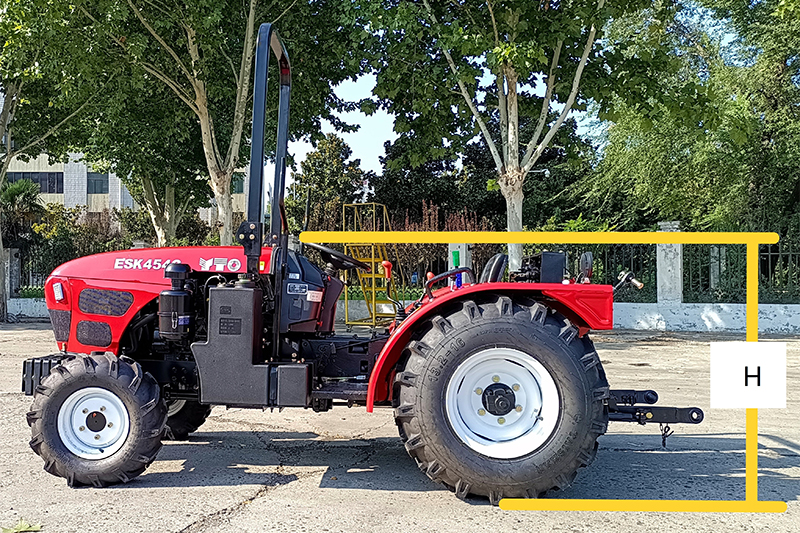

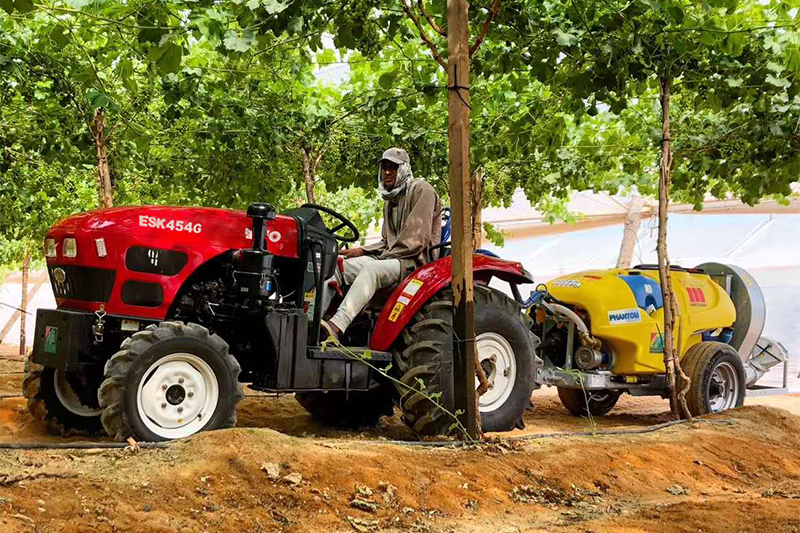

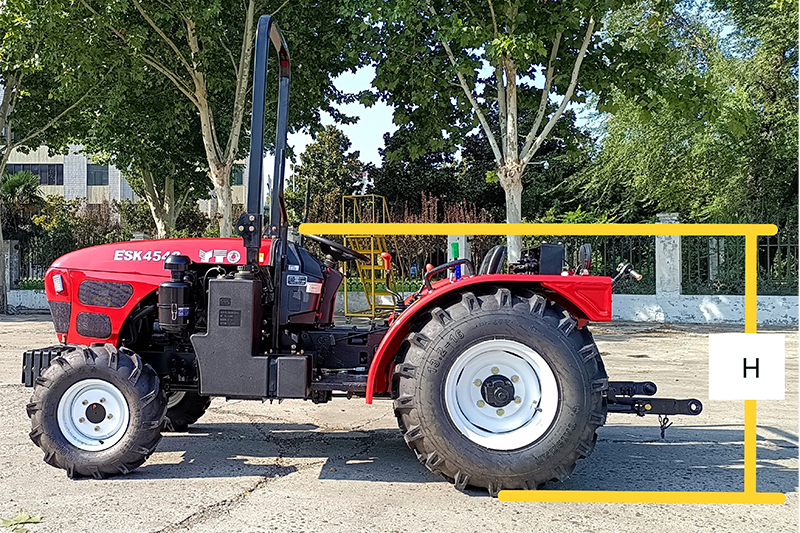

This tractor has a compact design with a steering wheel height of 1180 mm, making it ideal for low-canopy orchards and tight under-forest operations.
Equipped with YTO’s specialized diesel engines, offering strong power and low fuel consumption.
The orchard tractor features a large steering angle and a small turning radius for nimble maneuvering.
Steplessly adjustable rear wheel track, which is adaptable to various agronomic requirements.
Features hydraulic steering, with a light and flexible design that is easy to operate.

Specifications

Model	ESK4543G		ESK5043G	ESK5543G	ESK6043G	ESK6543G	ESK7043G
Engine type	4 cylinder, naturally aspirated diesel engine					4 cylinder, turbocharged diesel engine
Rated engine HP (kW)	33.1(45)		36.8(50)	40.5(55)	44.1(60)	47.8(65)	51.5(70)
Engine speed (rpm)	2400					2300
Clutch	Dry, single action (option: double action)				Dry, double action
Gears	8F/2R
Speed range (km/h)	2.44-33.48				2.21-29.86
Brake	Dry, shoe
Rear PTO (rpm)	540/720
Lift capacity (pivot point) (KN)	≥11.7
Hydraulic outputs (set)	1 or 2

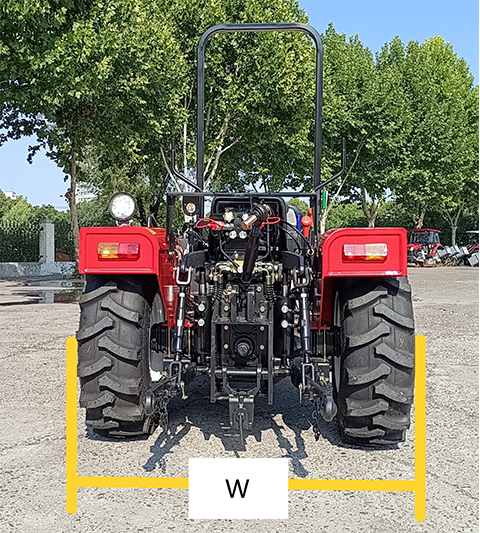

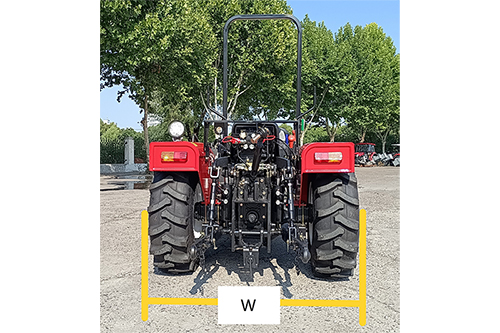

Dimensions (LWH) (mm)	3280×1262×1180 (steering wheel)
Wheelbase (mm)	1830
Ground clearance (mm)	255
Track width (F/R) (mm)	1000 /1100-1200
Min. turning radius (m)	4.0±0.3
Tyre (F/R)	6.0-12 / 13.2-16 (option: 6.00-14 /13.6-16)
Total mass (ROPS) (kg)	1670	1680			1745	1760
