Utility Tractor, 260-300HP

YTO-ELP2604/ELP2804/ELP3004/ELZ2804/ELZ3004

Utility Tractor, 260-300HP

Utility Tractor, 260-300HP

YTO-ELP2604/ELP2804/ELP3004/ELZ2804/ELZ3004
Features
  • YTO’s tractors are versatile helpers in farming chores as they deliver large traction force and excellent performance;
  • The air-cooled 6-cylindered turbocharged diesel engine features high horsepower and low fuel consumption;
  • Several gears allow for better performance, high fuel efficiency and a smooth operation;
  • The hydrostatic steering unit ensures precise control and requires less operator effort;
  • The wet disc brake greatly improves tractor safety;
  • The one-button design of the electro-hydraulic PTO and the differential lock enables easy and convenient operation;
  • Carraro’s front axle offers the advantages of high reliability and durability;
  • The enclosed cab provides operator a wide view and comfortable experience as it is equipped with climate control system.
  • Ploughing
    Ploughing
  • Wide view
    Wide view
  • Suspension seat
    Suspension seat

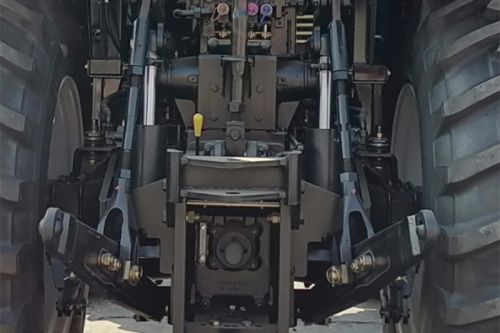

  • Lift cylinder
    Lift cylinder
Specifications
Model
ELP2604
ELP2804
ELP3004
ELZ2804
ELZ3004
Engine type Air-cooled 6-cylinder turbocharged diesel engine
Rated engine HP (kW) 191.5 (260) 205 (279) 220.6 (300) 205 (279) 220.6 (300)
Engine speed (rpm) 2200
Clutch Single-action Torsional shock absorbers
Gears 16F+16R 40F+40R
Gear shift mode Mechanical Power shift
Speed range (km/h) 3.19-38.9 0.3-36.8
Brake Wet, disc
Rear PTO (rpm) 540/1000
Lift capacity (pivot point) (kN) ≥75
Hydraulic multiplier (set) 4
Dimensions (L*W*H) (mm) 5730*2890*3500 5935*2760*3350
Wheel base (mm) 3104 3120
Ground clearance (mm) 460 495
Wheel track (F/R) (mm) 1591-2235/1849-2165 2050-2250/2050-2300
Min. turning radius (m) 8±0.3 10±0.3
Tyre (F/R) 600/70R30; 710/70R42
